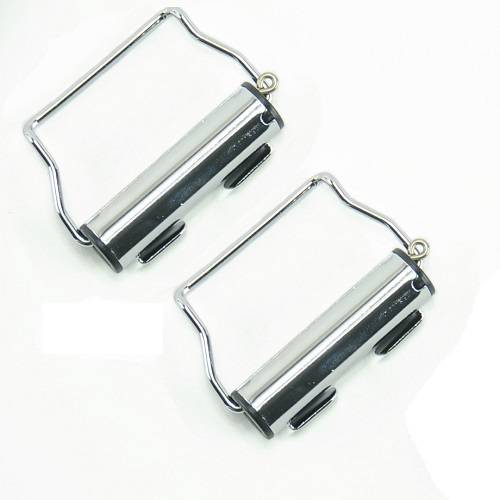

Retracts rear seat belts neatly to crack of the seat
Use one Roll Up Retractor per seat belt
This is NOT a load bearing component
Installation:
UNIT IS PREWOUND - If the retaining pin is removed, turn drum in direction of arrows 7 turns. Additional turns will damage the spring.
POSITION - Place the Compact Retractor on top side of belt at center of length to be store with the hinge pointing toward the rear of the seat & tabs down.
ATTACHING BELT - Insert the belt under the tabs. Remove the ping. Amount of belt not wound should be about three inches. (If adjustment is necessary, slide Compact Retractor back or forward & align squarely across the belt.)
IMPORTANT - SEAT BELT MUST BE WORN TIGHT! After installation, make sure that no webbing remains on the Compact Retractor when the belt is in use.
